2025 Growatt 11KWH 48V 5KW Off-Grid Solar Kit with Gel Battery
$4,379.00
Shipping to
Columbus
Starting From
$199.99
(Final rates at checkout)
2024 Growatt 12900WH 48V 5KW Off-Grid Solar Kit with Gel Battery
SKU:
CB1800GW5KG
Categories: Hybrid Solar Systems, Off-grid Solar Systems, Small Home Solar Systems, Solar Power Systems
Need Help?
Phone: 021 026 87857
(Mon.- Fri., 09:00 am-5:00 pm
Sat., 09:00 am-2:00 pm)
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:

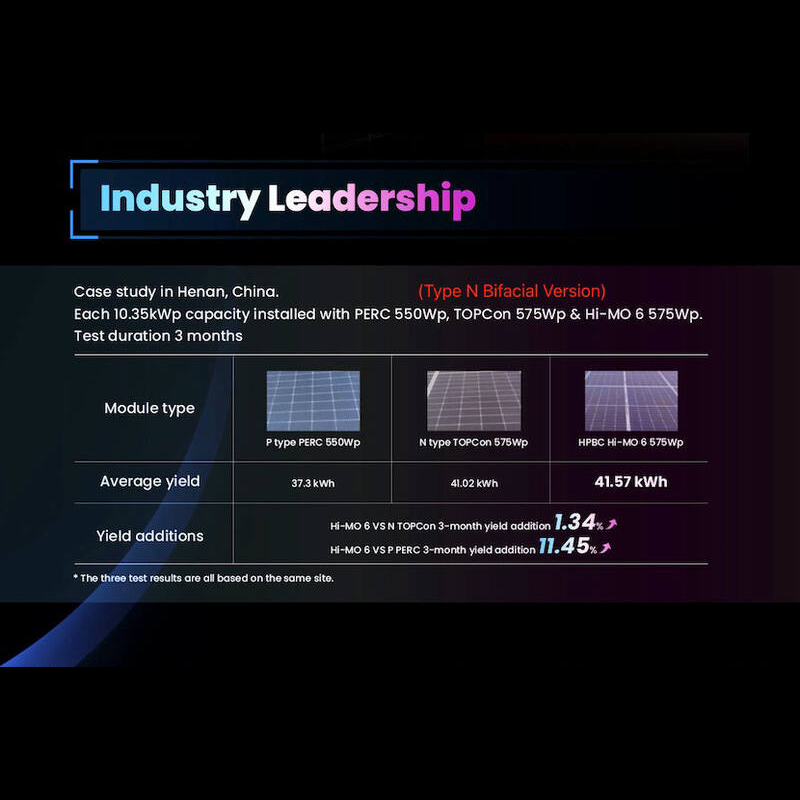

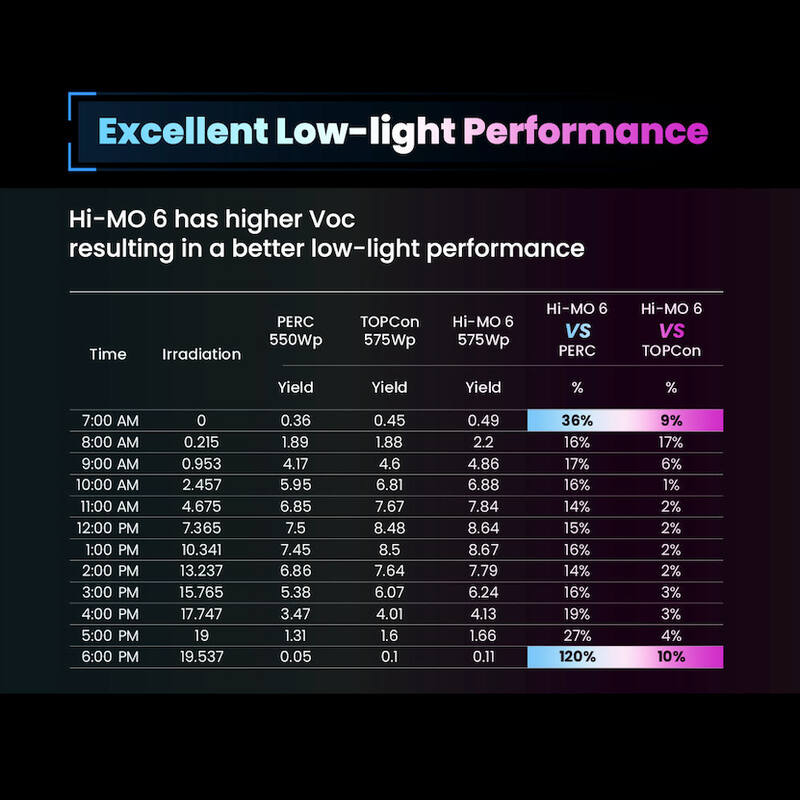

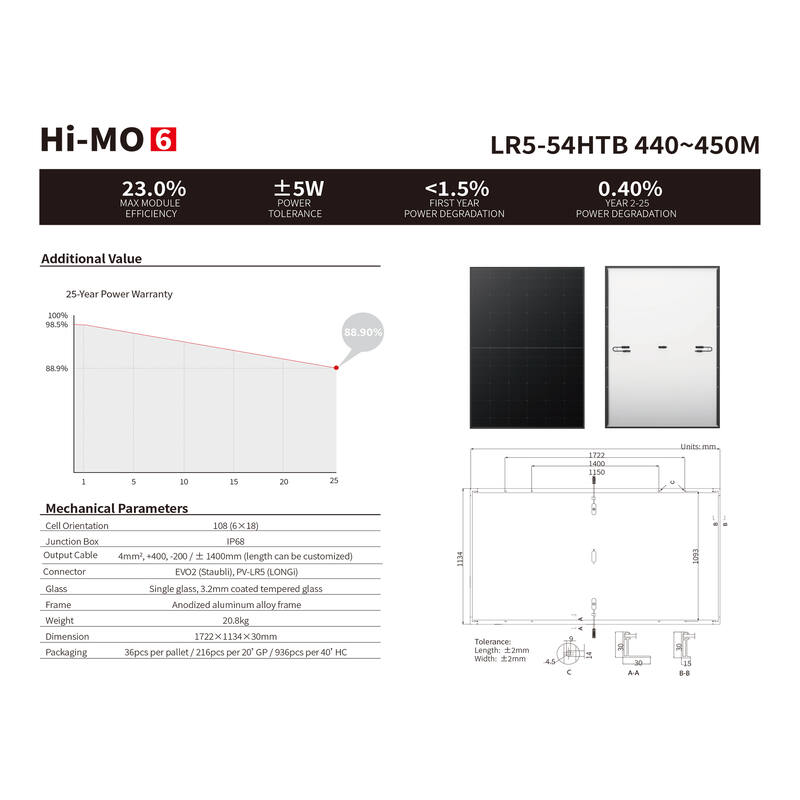

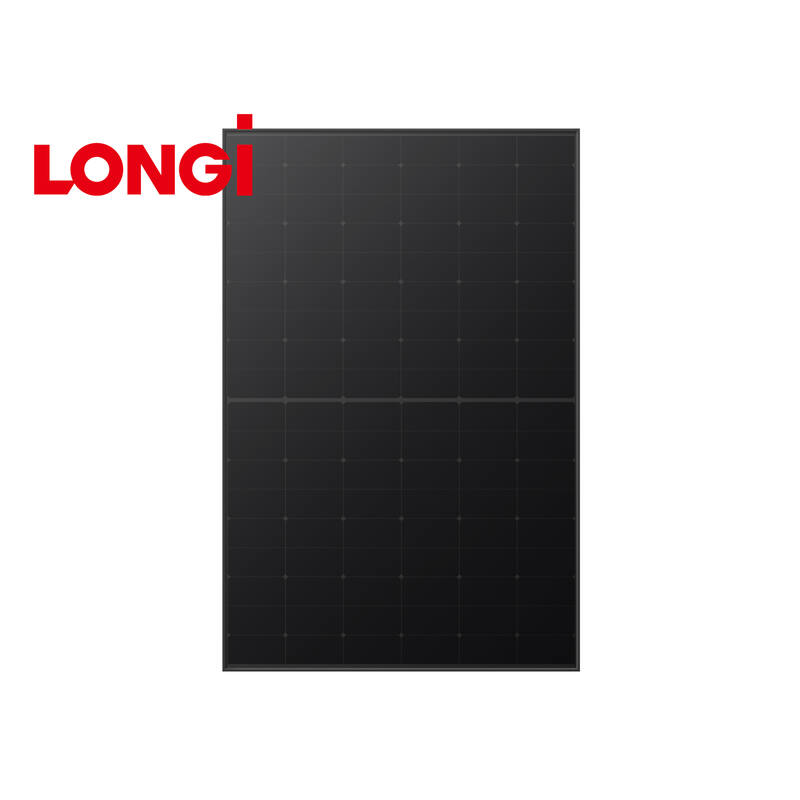

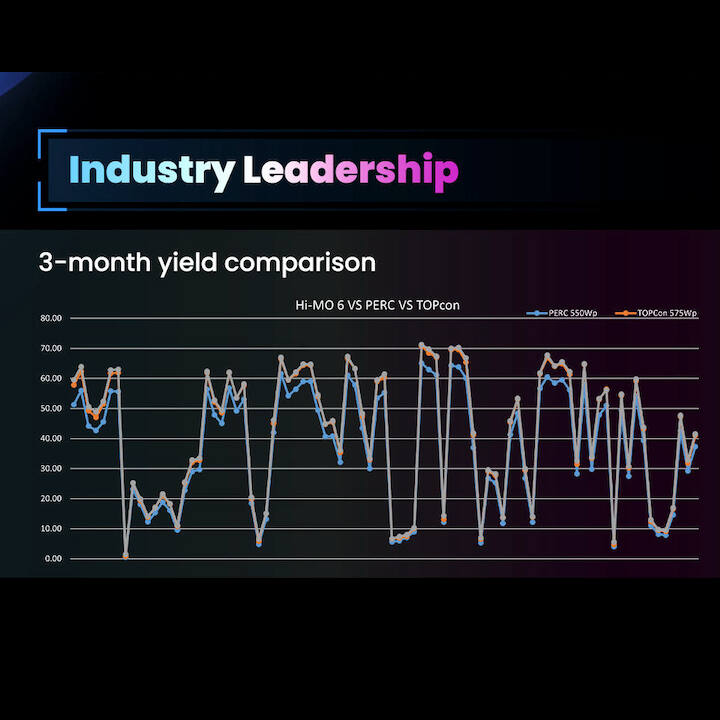

5 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

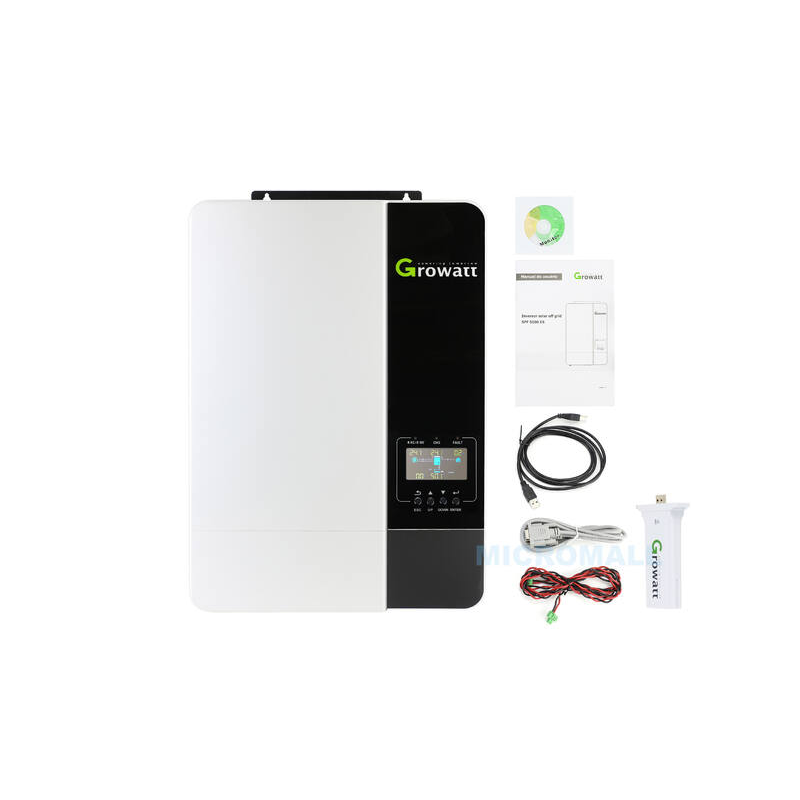

1 x GROWATT SPF 5000ES 48V 5000W HYBRID Charger Inverter (2 years warranty)

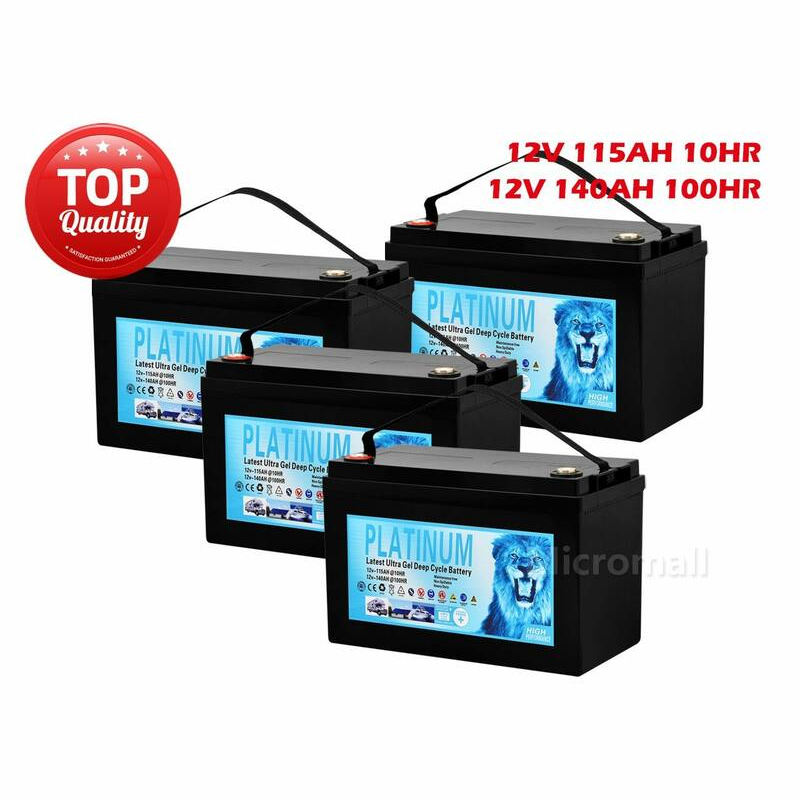

4 x 12V 140Ah GEL Deep Cycle Battery (2 years warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV 16a Fuse

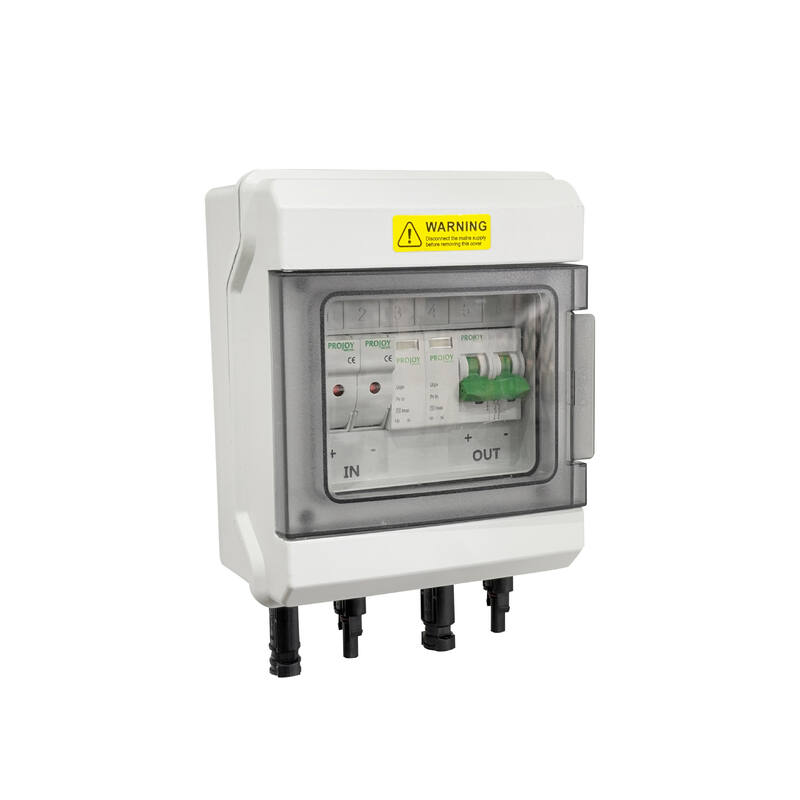

1 x PV 500v 25a Circuit Breaker
1 x Surge
1 x 48V Battery Equalizer
5 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $150. If you wish to upgrade, please contact us.**

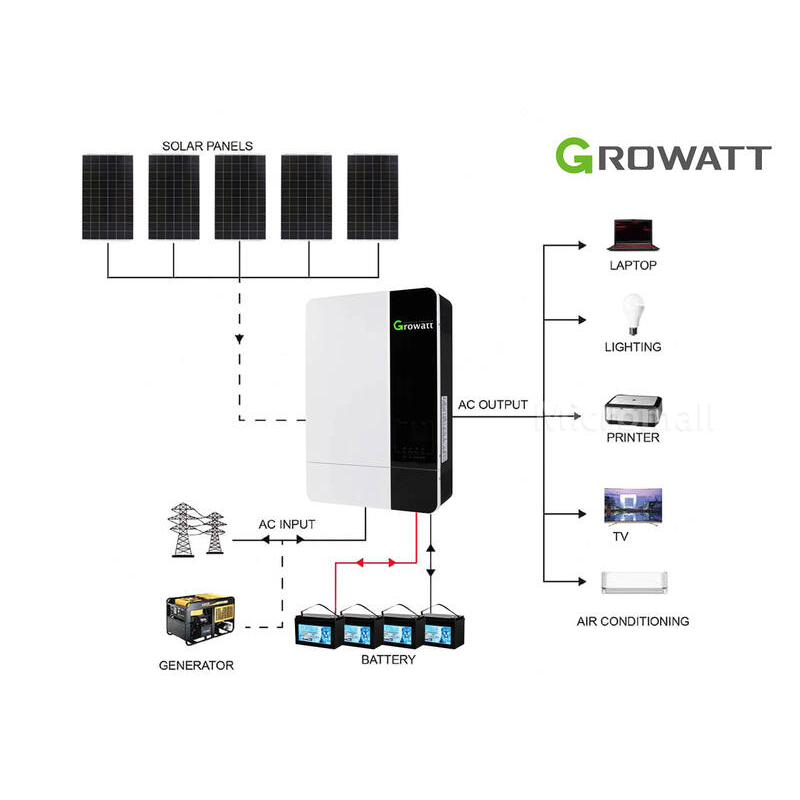

The Growatt SPF 5000 ES is an off-grid inverter suitable for a maximum circuit voltage of 450VDC. It can be used with batteries or independently. The integrated solar charger optimizes battery charging and discharging. Priorities can be assigned, such as preferring grid charging over PV installation charging. Monitoring is possible by adding a separate Wi-Fi or GPRS dongle.

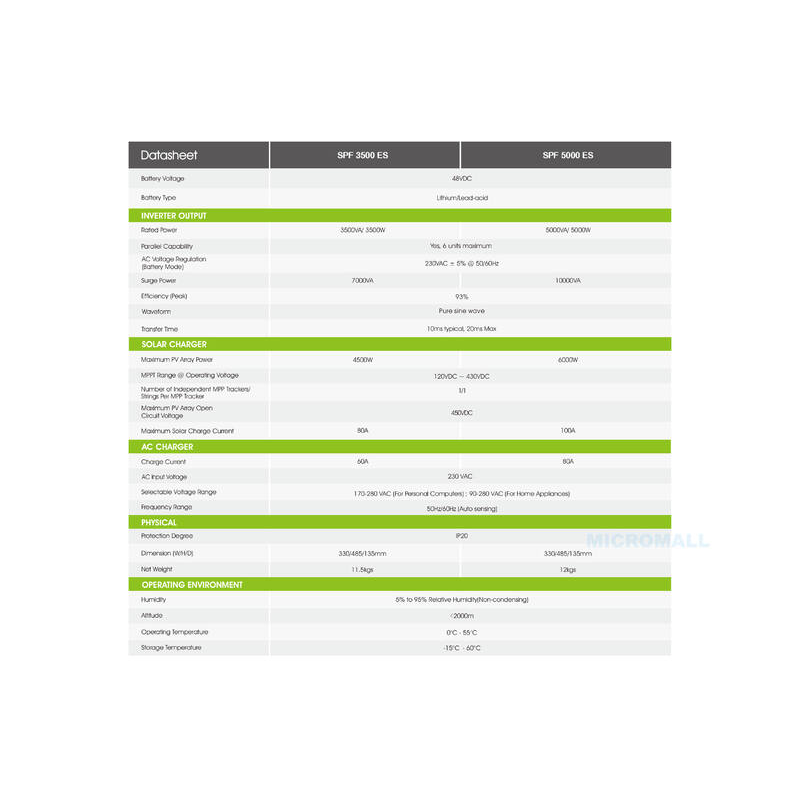

Technical Data:
Model: Growatt SPF 5000 ES
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid/AGM/GEL
Rated Power: 5000VA/5000W
Parallel Capability: Yes, maximum 6 units
Waveform: Pure sine wave
Maximum PV Array Power: 6000W
MPPT Range @ Operating Voltage: 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
AC Charge Current: 80A
Dimensions: 330x485x135mm
Weight: 12kg
SAA NZ Certificated Inverter
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance (latest NZ 2015 spec requirements).
Daily Output 11KWH with a 6-hour charging time based on average sunlight hours in New Zealand’s winter & summer seasons.
