Package Includes:
1 x Deye SUN-20K-SG01HP3-AU-AM2 20KW Three-Phase Hybrid Inverter (5 Years Manufacturer Warranty + 5 Years Local Warranty)
8 x Micromall 409V 5.2KW Batteries with 128 cells, 500amp Continuous (15-year warranty)
1 x High Voltage Cabinet with Control Operating System

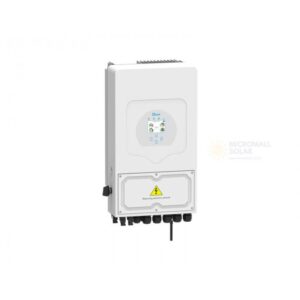

The SUN-20K-SG01HP3-AU-AM2 is a state-of-the-art three-phase hybrid inverter with high voltage battery compatibility, ensuring system safety and reliability. Its compact design and high-power density support a 1.3 DC/AC ratio, optimizing device investment. The inverter accommodates three-phase unbalanced output, expanding its application versatility. Equipped with dual CAN ports, one RS485 port for BMS, one RS232 port for remote control, and one DRM port, the system offers smart and flexible operation.
Battery Input Data:
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 150~800V
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Number of Battery Inputs: 1
Charging Curve: 3 Stages / Equalization
Charging Strategy for Li-Ion Battery: Self-adaptation to BMS
PV String Input Data:
Max. DC Input Power (W): 26000W
Max. DC Input Voltage (V): 1000
Start-up Voltage (V): 150V
MPPT Range (V): 200V-850V
Full Load DC Voltage Range (V): 500-850
PV Input Current (A): 26A+26A
Max. PV ISC (A): 32A+32A
Number of MPPT / Strings per MPPT: 2/2
AC Output Data:
Rated AC Output and UPS Power (W): 20000W
Max. AC Output Power (W): 22000W
Peak Power (Off-grid): 1.5 times of rated power, 10 S
AC Output Rated Current (A): 30.3
Max. AC Current (A): 35
Max. Continuous AC Passthrough (A): 80A
Output Frequency and Voltage: 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac
Grid Type: Three Phase
Efficiency:
Max. Efficiency: 97.60%
General Data:
Weight (kg): 26
Size (mm): 434W×645H×245D
**Vector Approved Inverter**
**DEYE LONGI New Zealand Distributor – Micromall Solar**
