PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series 25A 1P 250V

$13.97

Shipping to

Columbus

Starting From

$7.99

(Final rates at checkout)

PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series 25A 1P 250V

SKU: PEBS-H-63 25A 1P 250V Categories: ,

Need Help?

Phone: 021 026 87857
(Mon.- Fri., 09:00 am-5:00 pm

Sat., 09:00 am-2:00 pm)

PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series

***SAA NZ Certificated***

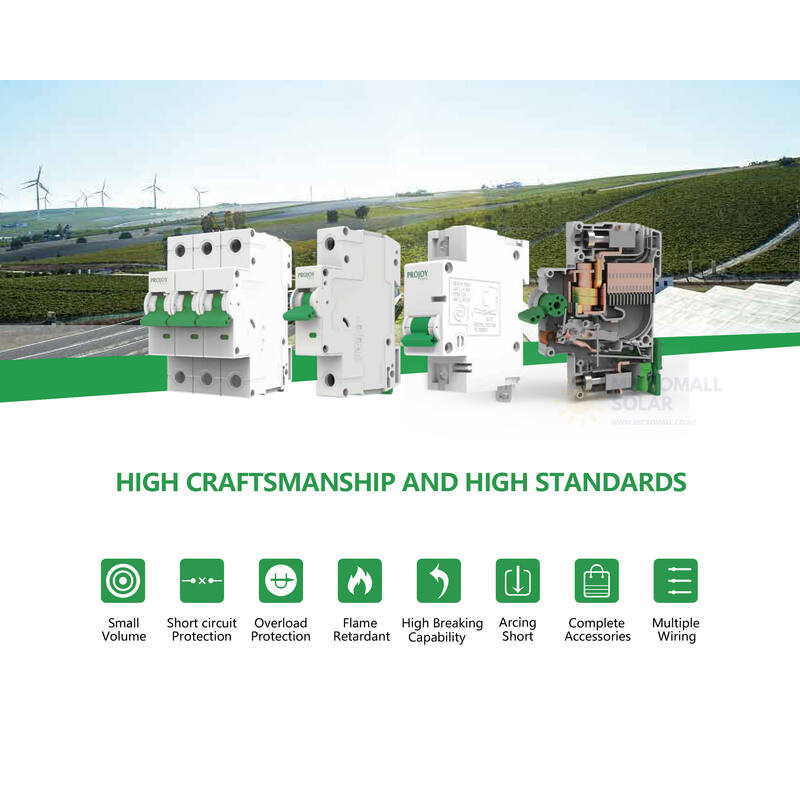

HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring

Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 1P
Rated Working Voltage Ue: 250 V DC
Frame Current: 63A
Rated Current In: 25A
Rated Insulation Voltage Ui: 1000V
Rated Impulse Withstand Voltage Uimp: 6kV

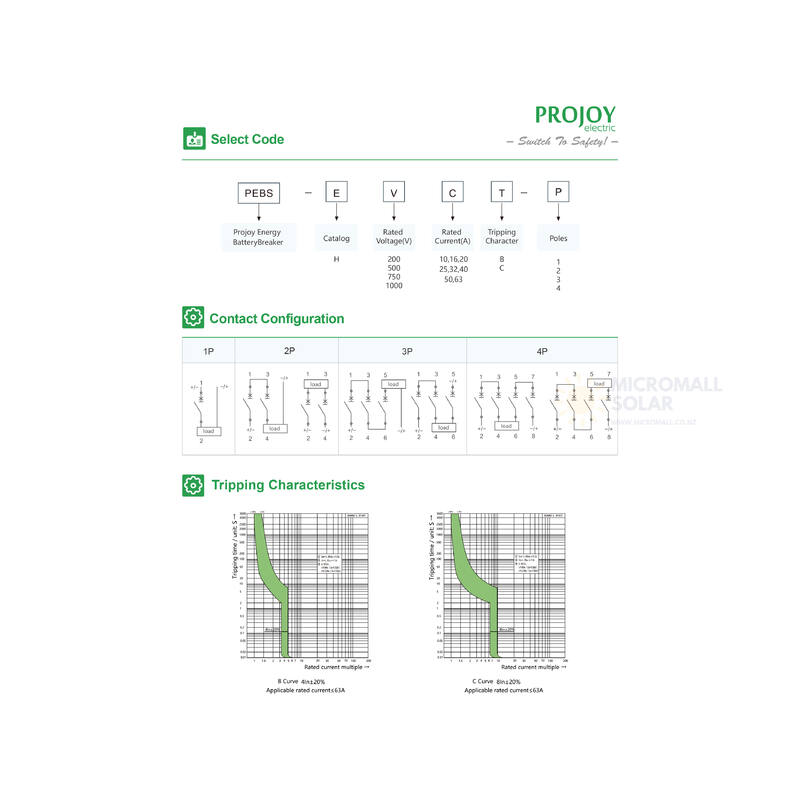

Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 6kA
Rated Service Short-Circuit Interrupting Capacity Ics: 6kA
Dimension: W 18mm x H 87.5mm
Weight: 0.12kg

Weight 0.10000000 kg
